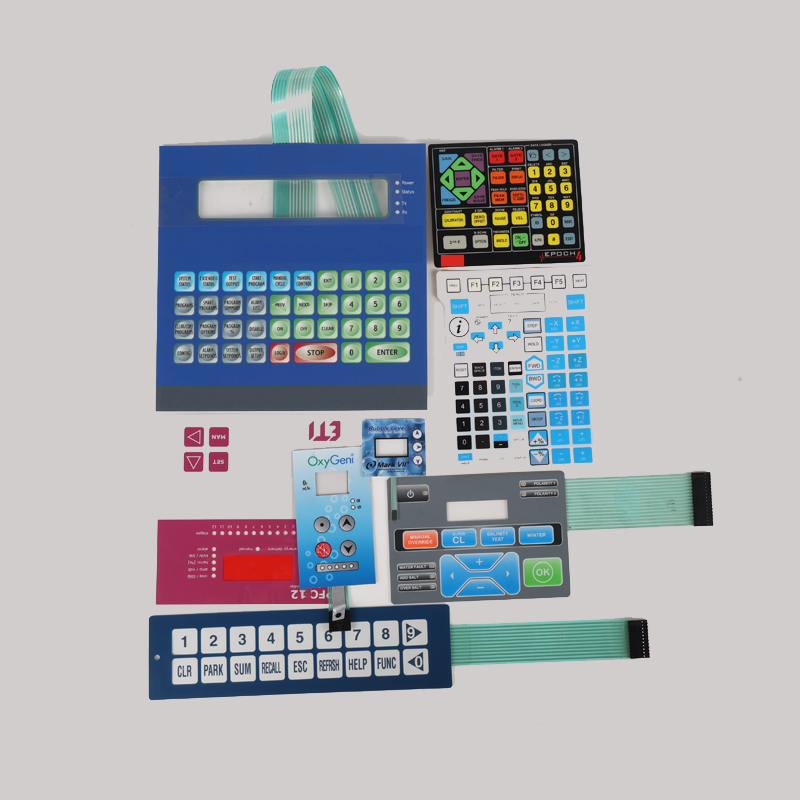

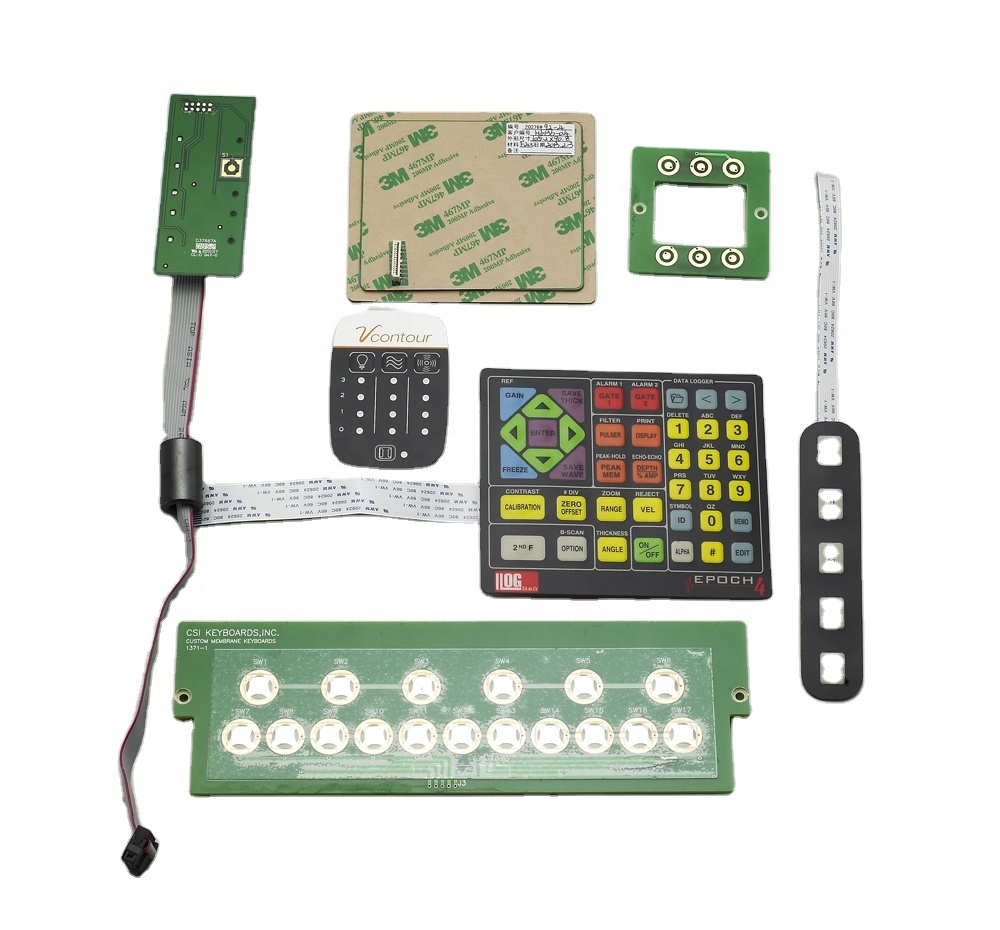

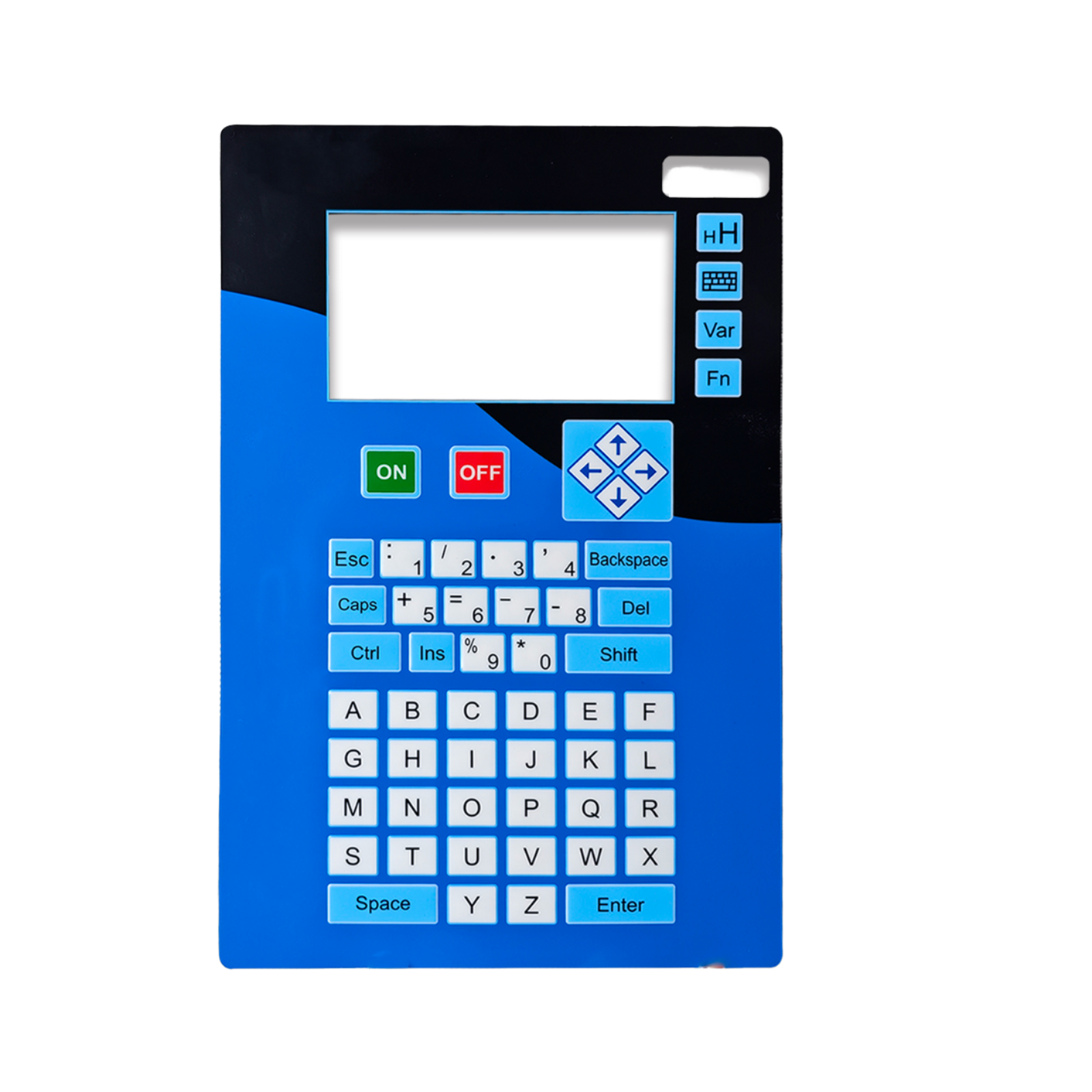

High Quality Reasonable Price Waterproof Membrane Keyboard with LEDs and 3M Adhesive Flat Design
Product Description
Digital Printing PET/PC Graphic Overlay Membrane Keypad Keyboard Switch
Product Description
All of our products are custom made from dimension, color, material requirement, cable length, tracks pitch, total thickness etc.

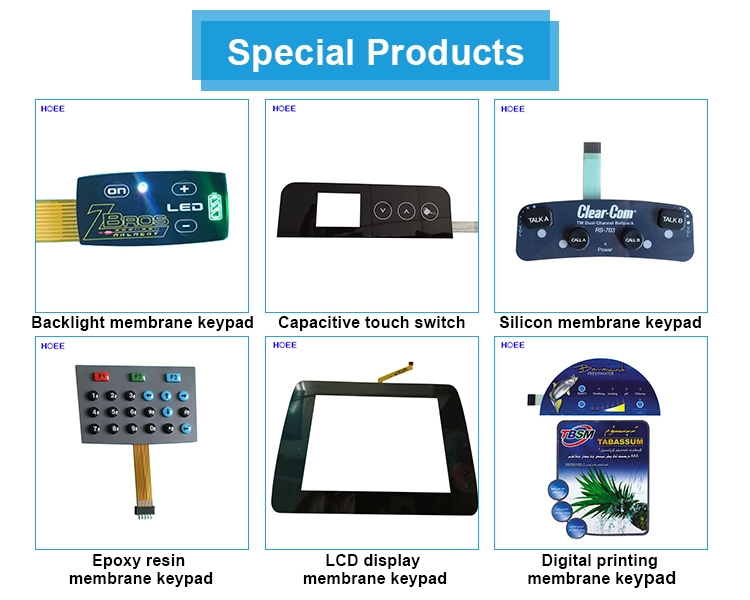

Also add special structure to make the products more attractive, like backlight, fluorescent etc.
Expect for getting your design idea, then we will work hard together to achieve it.
Technical Specification
| Environmental | Operating Tem | From -20 to 65 °C / -4 to 149 °F |
| Storage Tem | From -40 to 85 °C / -40 to 185 °F | |
| Seal | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
| Sealing Options | Special sealing options are available for wet environments. | |
| Mechanical | Travel | .007 inches to .015 inches |
| Operating Force | 4oz to 8oz | |
| Electrical | Operating Voltage | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |
| Circuitry | X-Y matrix or one side common |
Our Advantage
20 years' producing history and 10 years' exporting experience.
Stable and experienced working team: more than 80% of the staffs have been working in our factory for more than 6 years.
Professional engineering team will offer technical support in development step of new project.

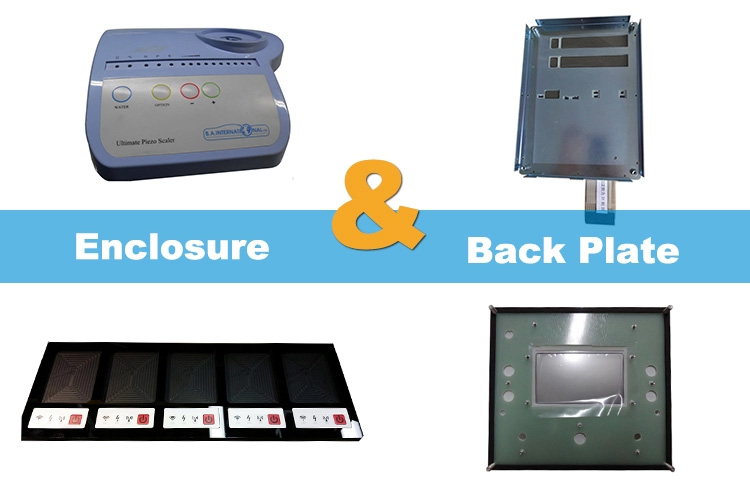

Provide one-stop production and assembly service from custom membrane switch to PCBA, enclosure, back plate etc.
Using high standard mould to assure the products with high quality and precise dimensions.
In-house 100% functionally tested.
Product Details

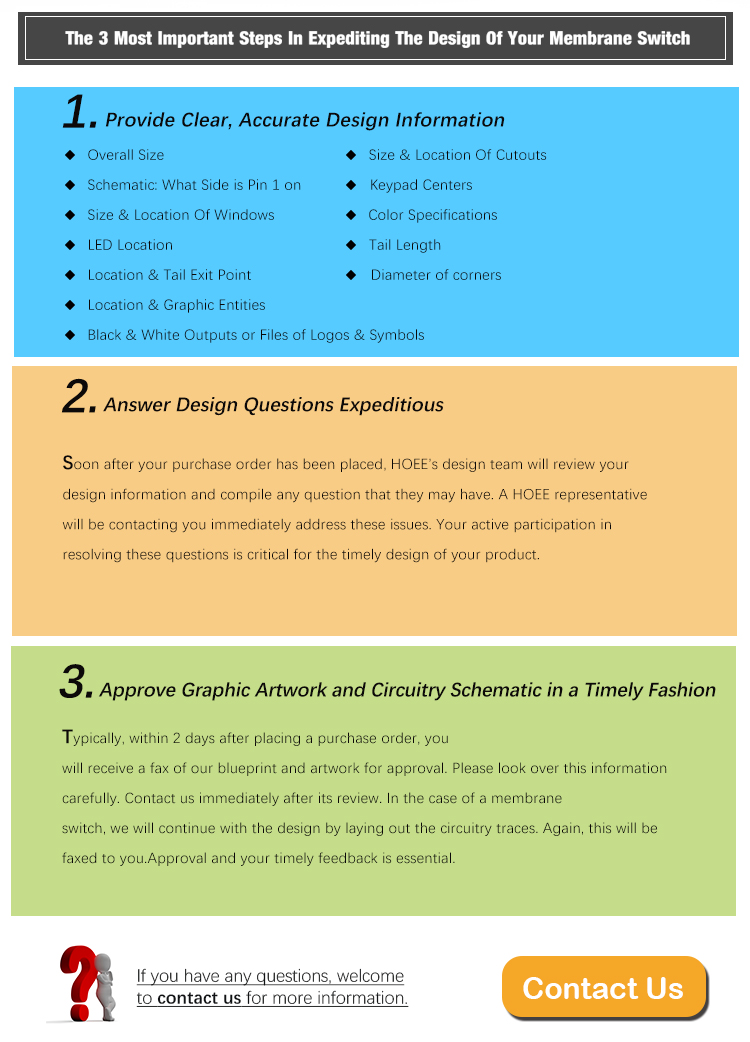

Custom Process

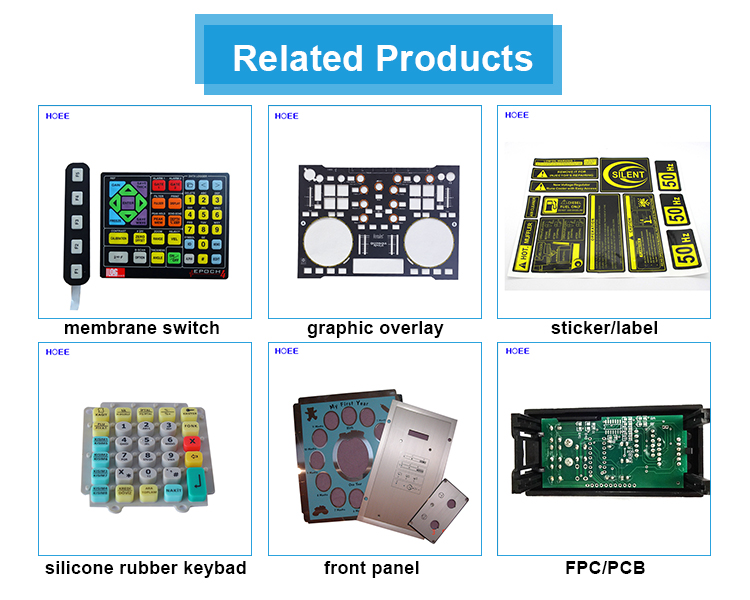

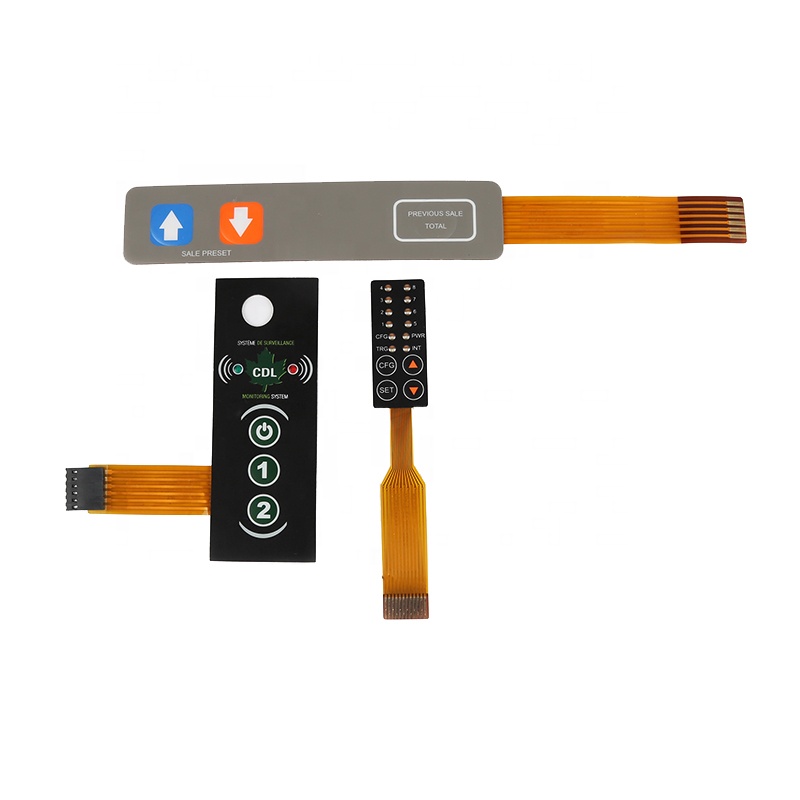

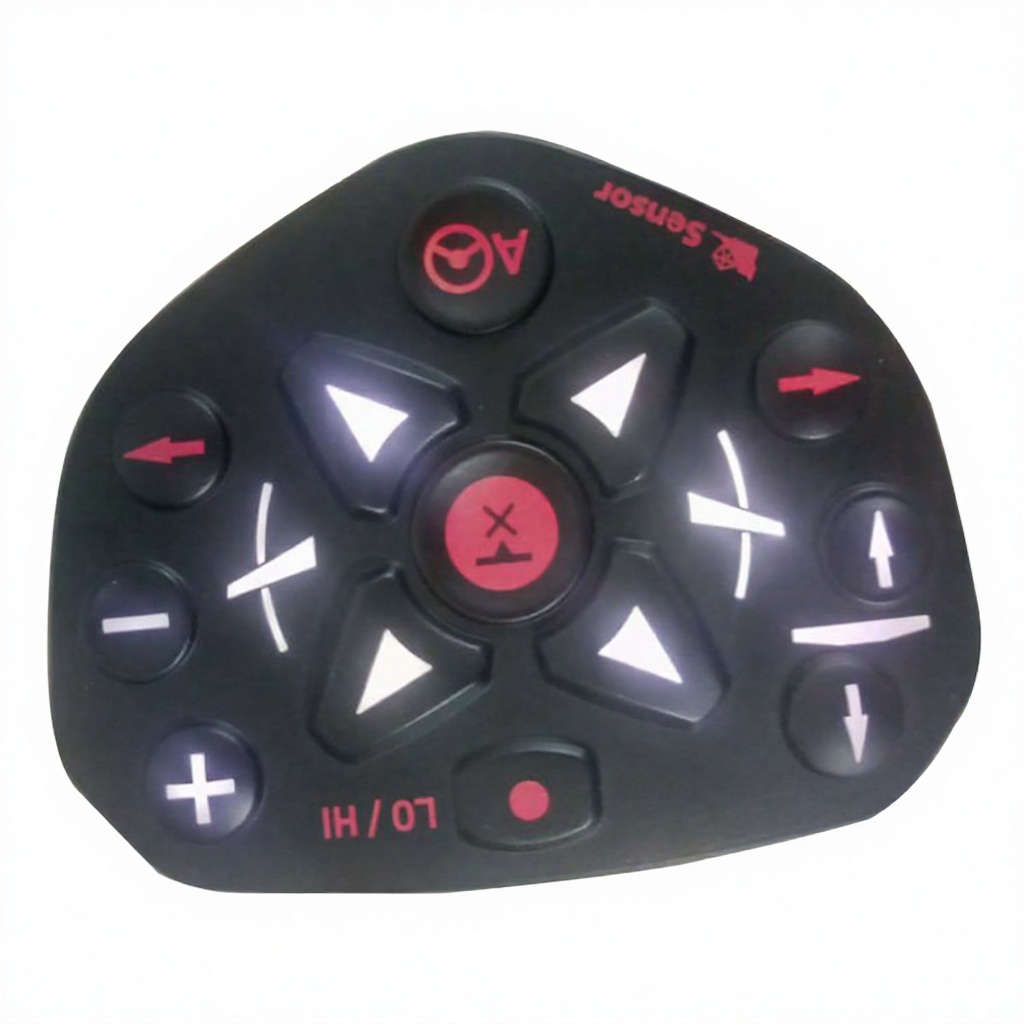

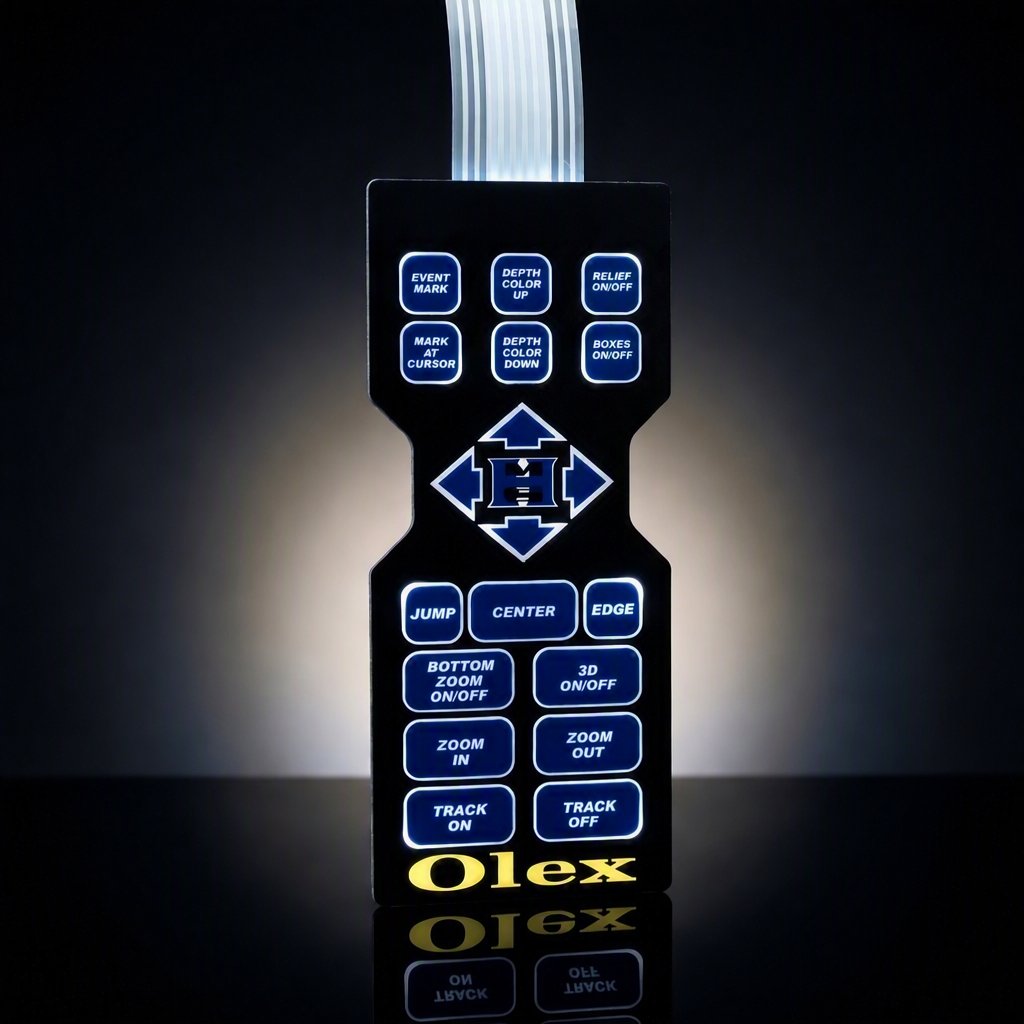

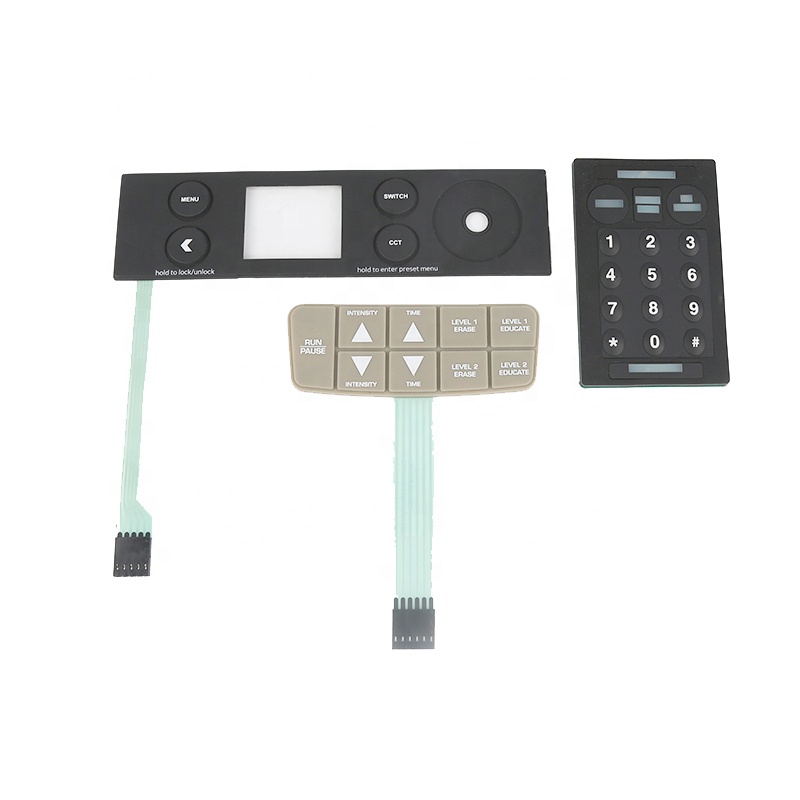

Related Products
About Us

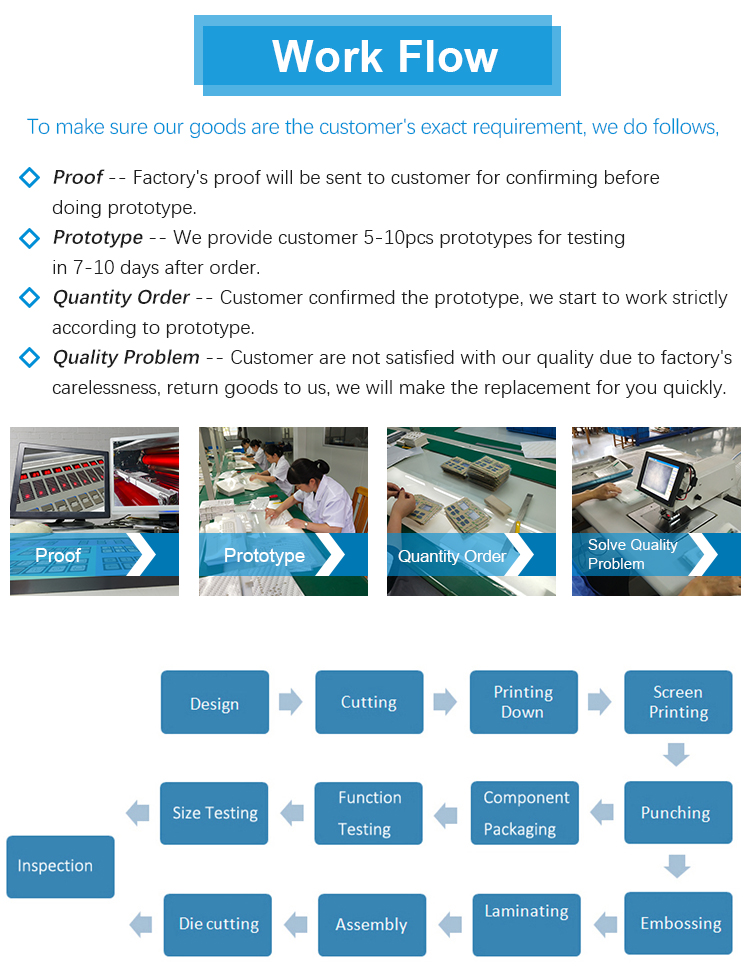

Work Flow
Business Cooperation
Frequently Asked Questions
1 Are you a manufacturer or trading agent?
We are an experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
2 Can you offer samples?
(1) Stock Samples: If you paid the freight cost, we can provide free samples for you.
(2) Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.
(2) Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.
3 What is the delivery time?
(1) Customized sample: About 7 to 10 days.
(2) Mass production: About 2--3 weeks.
(2) Mass production: About 2--3 weeks.
4 Is the prototype necessary?
Yes. Most of the items are customized orders, so the prototype will be sent to customer for approval.
5 What is the MOQ?
Generally, we require 100pcs for MOQ or USD280 for equivalent.
6 What is the terms of payment?
As the client need, we mainly receive trade assurance, TT, west union, PayPal etc.
Contact us immediately
Our experienced representative will be contacting you to immediately create your unique Membrane Switch.
