Industrial Control Panel Switch Engineering: Technical Selection, Durability Benchmarks & Next-Gen HMI Architectures
When industrial equipment operates in environments saturated with machine lubricants, high-pressure washdown chemicals, continuous mechanical vibration, and wide thermal fluctuations (-40°C to +85°C), specifying the proper industrial control panel switch is vital to avoid catastrophic factory downtime. Zhejiang ZIRA Membrane Switch Co., Ltd. provides design-for-manufacturing (DFM) support, material stack-up optimization, and complete precision assembly for global OEMs requiring mission-critical human-machine interfaces.
- Hermetic IP65 / IP67 / NEMA 4X Environmental Sealing
- Over 5,000,000 Actuations with Tactile Metal Domes
- Full ESD / EMI / RFI Protective Shielding Layers
- 100% Computerized Circuit Testing · Fast Prototyping
0+Years in HMI manufacturing (founded 1996)
0m²ISO-standard clean workshop floor
0High-speed dedicated screen printing lines
0%Automated electrical continuity & isolation test
Onsite verified by Intertek. Trusted supplier for Fortune 500 industrial conglomerates including ABB and Emerson. View Audit Report
Product Architectures
Engineered Industrial Control Panel Switch Configurations
Industrial machinery demands tailored actuation force, chemical resistance, and electrical topology. Discover four core switch architectures engineered by Zhejiang ZIRA Membrane Switch Co., Ltd. for modern automated control cabinets and machinery consoles.
PCB / FR4 Assembly
Rigid PCB-Backed Industrial HMI Switch Assembly
Send an Inquiry Silicone Hybrid

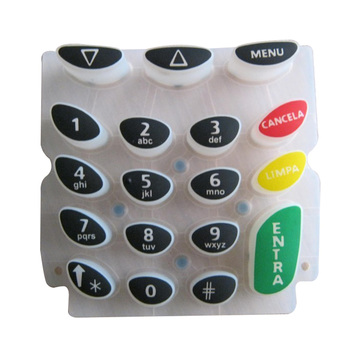

Silicone Rubber Keymat Industrial Panel Switch
Send an Inquiry Capacitive ITO
Solid-State Capacitive Touch Control Panel Switch
Send an Inquiry Waterproof IP67
Harsh Washdown Waterproof Industrial Panel Switch
Send an Inquiry Strategic Sourcing Intelligence
Global Procurement Trends for Industrial Control Panel Switches
Procurement directors and systems engineers are fundamentally transitioning from legacy electromechanical pushbuttons to unified smart control interfaces. Here is how leading global enterprises optimize their HMI supply chains.
Consolidation of Modular BOMs
Sourcing teams are actively replacing multi-part electromechanical assemblies (discrete 22mm pilot switches, contact blocks, wiring looms, metal brackets) with monolithic, pre-wired industrial membrane or PCB switch modules. This cuts cabinet assembly labor by up to 65% and reduces line inspection overhead.
Rigorous Onsite Audit Protocols
Global supply disruptions have heightened scrutiny on Tier-2 sub-component sources. Enterprise buyers favor manufacturing facilities verified onsite by international bureaus such as Intertek. Supplier reliability requires proof of lot-traceable raw films (e.g., MacDermid Autotype, 3M) and calibrated testing rigs.
TCO Evaluation Over Piece-Price
Procuring low-cost polyester films that yellow, crack, or suffer silver migration within 18 months generates exorbitant field replacement claims. Forward-thinking procurement models prioritize Total Cost of Ownership (TCO) by demanding 5,000,000-cycle stainless domes and hydrophobic perimeter seals.
Rapid DFM Prototyping
Compressed NPI (New Product Introduction) cycles necessitate suppliers with quick-turn prototyping capabilities. Sourcing managers partner with direct manufacturers offering 1-piece sample verification, in-house laser cutting, and digital proofs before investing in hard tooling dies.
Industry Roadmap & Innovation
Technological Evolution in Industrial Control Switches
The convergence of Industry 4.0, hygienic design standards, and smart factory ergonomics has catalyzed groundbreaking material science innovations in human-machine interface construction.
LGF & Uniform Micro-Backlighting
Bulky legacy incandescent bulbs and short-lived electroluminescent (EL) lamps are being superseded by ultra-thin Light Guide Film (LGF) and side-firing SMT LEDs. This delivers uniform graphic backlighting under 0.8mm stack-up thickness with negligible thermal emission and a 50,000+ hour operating life.
Hygienic Antimicrobial Hardcoats
In food processing, pharmaceutical cleanrooms, and medical environments, overlays with silver-ion antimicrobial topcoats (such as Autotex AM) destroy 99.9% of bacteria and withstand aggressive CIP (Clean-in-Place) washdown chemicals including sodium hypochlorite, isopropyl alcohol, and peroxides.
High-Frequency ESD / EMC Shielding
As industrial automation introduces high-frequency variable frequency drives (VFDs) and wireless protocols (5G, LoRaWAN), industrial control panel switches incorporate monolithic conductive carbon or vacuum-metallized aluminum foil shields to protect sensitive microcontrollers from 15kV static discharge and electromagnetic noise.
Smart Bus-Integrated Assemblies
Modern switch assemblies eliminate point-to-point discrete harnesses by incorporating onboard microcontrollers supporting Modbus, CANbus, I2C, or RS-485 directly onto the FR4 backer board. This transforms a multi-switch cluster into an addressable plug-and-play digital node.
Engineering Comparison
Industrial Control Panel Switch Technology Comparison Matrix
Evaluate mechanical, environmental, and electrical parameters across the four premier industrial switch architectures to select the ideal stack-up for your equipment chassis.
| Performance Metric | Metal Dome Membrane | Rigid PCB Assembly | Silicone Keymat Hybrid | Capacitive ITO Solid-State |
|---|---|---|---|---|
| Actuation Lifespan | 1,000,000 – 5,000,000 cycles | 5,000,000+ cycles | 1,000,000 – 3,000,000 cycles | 10,000,000+ cycles (Solid-state) |
| Ingress Sealing (IP) | IP65 to IP67 sealed | IP65 to IP67 (with bezel gasket) | IP66 to IP68 (integrated lip seal) | IP68 / IP69K (flush glass bonded) |
| Gloved Tactile Feedback | Crisp physical snap (250–500g) | Crisp physical snap (250–500g) | Deep cushioned tactile stroke | None (Requires buzzer/haptic motor) |
| Shock & Vibration | Excellent (low mass film) | Military-grade (FR4 reinforced) | Exceptional (elastomer absorbs shock) | Immune to mechanical bounce |
| Operating Temp Range | -40°C to +85°C | -40°C to +105°C | -50°C to +180°C | -30°C to +80°C |
| Component Integration | SMT LEDs, thin sensors | LEDs, MCUs, buzzer, connectors | Backlight channels, light pipes | Touch controller, discrete ICs |
*Custom stack-up configurations can combine materials (e.g., silicone elastomer bonded to tactile FR4 PCB switches) for hybrid environments.
Industrial Switch Sourcing FAQ
What ingress protection (IP) rating can an industrial control switch achieve?
Utilizing high-performance modified acrylic adhesives (such as 3M 467MP, 468MP, or 300LSE) with engineered perimeter gaskets, our industrial control panel switches easily achieve IP65 (dust-tight, low-pressure washdown) and IP67 (temporary water immersion down to 1 meter). Sealed vent chambers equalize barometric pressure during rapid thermal cycling without compromising the seal.
How do you prevent silver migration and circuit failure in humid plants?
Silver migration occurs when moisture, ionic contamination, and electrical bias co-exist. At Zhejiang ZIRA Membrane Switch Co., Ltd., we prevent this by printing carbon overcoat barriers across all conductive silver traces, utilizing dielectric isolation layers with high dielectric breakdown strength (>5,000V/mil), or substituting flexible copper/polyimide (FPC) and gold-plated PCB substrates for extremely damp operations.
What tactile actuation force is recommended for factory operators wearing gloves?
For industrial machinery operators wearing heavy nitrile, leather, or Kevlar gloves, light-actuation switches (under 200g) result in accidental tripping. We recommend stainless steel metal domes with an actuation trip force of 350g to 500g paired with rim-embossed or pillow-embossed graphic keys to ensure distinct tactile confirmation and precise finger locating.
Can customized industrial switch panels withstand UV exposure and petrochemicals?
Yes. We utilize premium biaxially oriented polyester (PET) films treated with UV inhibitors (such as MacDermid Autotex XE or polyester films with textured hardcoats). These resist yellowing, embrittlement, and blistering when exposed to direct sunlight, motor oils, diesel fuels, hydraulic fluids, and industrial degreasers.
What is your typical production lead time and minimum order quantity?
Prototype samples can be delivered in 7 to 10 working days, with initial pilot batches starting from just 1 piece. Standard volume production runs are typically completed within 12 to 18 working days depending on circuit layer count and tooling complexity. We support low-to-mid volume OEM requirements starting at 100 pieces.
Enterprise Manufacturing Capabilities
Why Tier-1 Industrial Brands Partner with ZIRA
Zhejiang ZIRA Membrane Switch Co., Ltd. has specialized in industrial human-machine interface manufacturing since 1996, delivering certified quality control from prototype to mass production.
29+ Years Dedicated Manufacturing
Established in 1996 in Ningbo, Zhejiang, we operate a 5,000 m² clean workshop equipped with 5 specialized screen printing, curing, and precision die-cutting lines.
Engineering & DFM Review
Our experienced R&D engineering department reviews circuit track width, trace separation, dome trip ratios, and venting channels before tooling to eliminate revision lag.
100% Automated Testing
Every single switch unit undergoes computer-controlled electrical testing for loop resistance, open/short circuits, insulation breakdown resistance, and LED forward voltage verification.
Global Export Execution
Over 50% of our products are exported across North America, Western Europe, and Oceania. We support FOB, CIF, EXW, CPT, and DDP terms with flexible payment options (T/T, L/C, Western Union).
Quality Controlled Workflow
10 Production Stages of an Industrial Control Panel Switch
Every manufacturing phase follows strict Standard Operating Procedures (SOPs) to guarantee zero defective components enter your final equipment assembly line.
Raw Materials
Incoming PET, FR4, metal domes, and 3M adhesives undergo lot-sampling quality validation.
DFM Design
CAD schematics, circuit layout, and stack-up tolerances verified against client specifications.
Precision Plates
High-tension polyester and stainless steel mesh exposed for micrometer printing fidelity.
Screen Printing
Conductive silver inks, carbon protective layers, and custom graphics printed in cleanrooms.
Thermal Curing
Tunnel ovens bake polymer inks to ensure low electrical resistance and high adhesion strength.
Registration
CCD optical punching registers target holes to ensure multi-layer alignment under ±0.05mm.
Key Embossing
Hydro-forming or matched steel dies shape perimeter rims and tactile button profiles.
Terminations
Nicomatic, FCI Clincher, or Berg female/male headers crimped securely to flex tail ends.
Multi-Lamination
Graphic overlay, dome retainer, circuit, spacer, and rear adhesives combined in cleanrooms.
100% QA Inspection
Automated electrical continuity, contact resistance, and tactile force displacement tests.
Verified Infrastructure
Tour Our Industrial Manufacturing Facility
Inspect our modern workshop floor, automated production machinery, and testing laboratories located in the Changhe Industrial Park, Ningbo.
Enterprise Validation
Trusted by Global Automation & Control Leaders
Our industrial control panel switches are integrated into high-reliability electrical systems, power distribution cabinets, and heavy automation machinery worldwide.
ABBLong-term cooperation
EMERSONLong-term cooperation
Onsite Verified FactoryVerified Supplier11+ years exporting
North America
Supplying NEMA 4X industrial switch panels to machine tool and process automation builders.
Western Europe
RoHS & REACH compliant membrane control interfaces for German, French, and UK automation lines.
South America
Heavy-duty, dustproof control keypads for agricultural machinery and mining control consoles.
Oceania & Asia
Sealed marine, cold-storage, and material-handling console switches engineered for extreme conditions.
Direct Engineering Consultation
Get a Rapid DFM Review & Quotation for Your Switch Panel
Send your CAD mechanical files, circuit schematic, or functional requirements. Our senior application engineers provide material recommendations, stack-up diagrams, and sampling schedules within 24 hours.
