RoHS/REACH Compliant UL94V0 ISO 9001 IP67 Tactile Membrane Keyboard
Perimeter sealed IP67 ingress protection against salt-fog and fine dust ingress.
Precision HMI Showcase
High-Reliability Polydome & Tactile Membrane Interface Solutions
Engineered for high-vibration maritime gear, sterile clinical systems, and heavy-duty logistics automation across Duval County and Florida’s industrial belt.
OEM/ODM Membrane Switch Appliance Control Panel Polyester PET Overlay
Chemically inert Autotex PET film with custom texture embossing and tight die-cutting.
Uniform Illumination Backlight Membrane Switch with Optical Light Guide
Ultra-thin Light Guide Film (LGF) simulation ensuring zero-hotspot operator feedback.

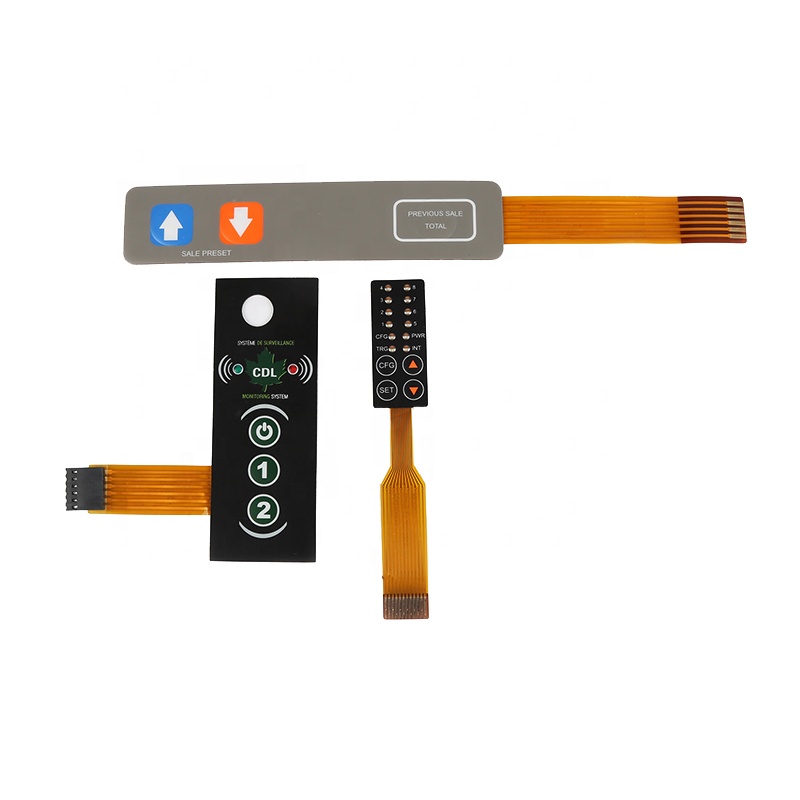

Waterproof Capacitive Touch Membrane Switch with Custom Color & Texture
Wear-free solid-state capacitive sensing layer matching modern human-machine interfaces.
Shock-Resistant Waterproof Industrial Membrane Panel Switch
Impact-absorbing structural spacers for port material handling and logistics machinery.

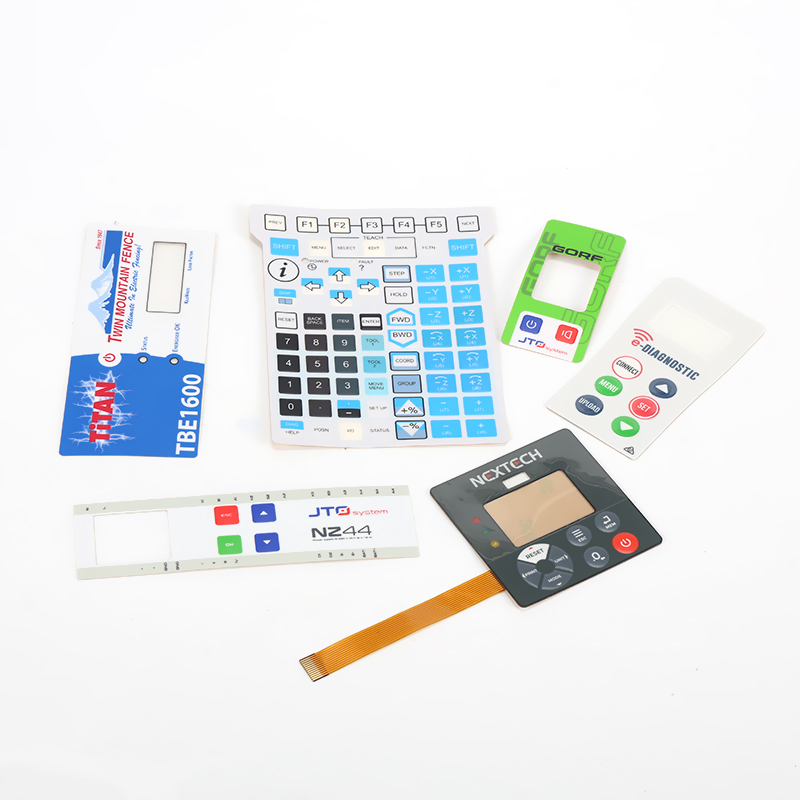

Harsh Environment Waterproof Dustproof PET Membrane Push Button Switch
Sub-surface screen printed UV-stabilized legends immune to chemical washdowns.
Medical Grade Polyester Keypad Switch with 3M 467/468MP Adhesive Backing
Antimicrobial surface coatings with tight 2.54mm pitch female locking connectors.

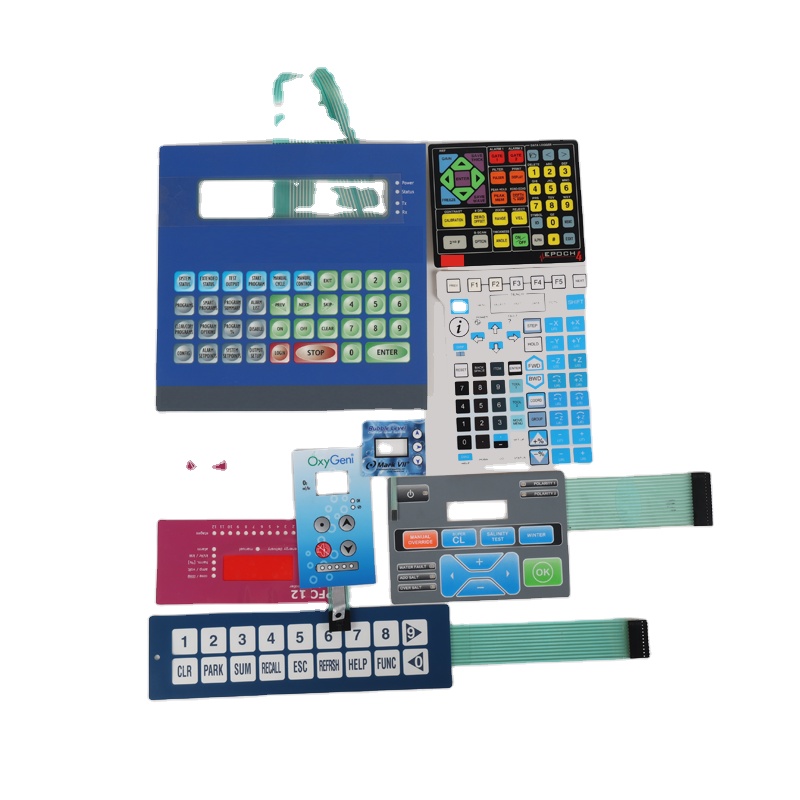

Waterproof Metal Dome Tactile Push Button Switch with 3M Bonding
Crisp snap ratio tactile feedback engineered for over 1,000,000 operational cycles.
Engineering Authority
Polydome Interface Architecture: Material Physics & Mechanical Integrity
A deep-dive technical evaluation for Jacksonville hardware engineers balancing actuation force, thermal cycling, unit cost, and hermetic perimeter protection.
Monolithic Embossed Domes
Polydome (polyester dome) switches utilize hydro-formed or thermo-formed polyester layers where the tactile snap action is integrated directly into the graphic overlay or spacer layer. By eliminating loose metal discs, the risk of internal dome migration or contamination during severe vibration is zero.
Consistent Snap Ratio & Force
Precision matched heat-stabilized polyester ensures actuation forces ranging from 250g to 450g with snap ratios maintained between 40% and 60%. This configuration delivers positive tactile feedback to gloved workers in Jacksonville's distribution and transport hubs without acoustic fatigue.
Gas-Tight Adhesive Sealing
Assembled with genuine 3M 467MP or 3M 468MP high-performance acrylic adhesives, our polydome assemblies create an impervious IP65 to IP67 barrier. This protects printed silver circuits against moisture condensation, coastal salinity, and industrial solvent degradation.
| Evaluation Parameter | Polydome Membrane Switch | Metal Dome Membrane Switch | Capacitive ITO Solid-State | Silicone Elastomer Keypad |
|---|---|---|---|---|
| Tactile Actuation Feel | Molded PET snap (soft tactile) | Sharp, audible metallic click | Non-tactile (haptic required) | Long-travel cushioned stroke |
| Rated Life Cycle | 1,000,000 to 3,000,000 cycles | 1,000,000 to 5,000,000 cycles | 10,000,000+ cycles | 2,000,000 to 5,000,000 cycles |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) | -40°C to +85°C (-40°F to 185°F) | -30°C to +85°C (-22°F to 185°F) | -40°C to +120°C (-40°F to 248°F) |
| Relative Tooling Cost | Low to Medium (Emboss dies) | Low (Standard laser die) | Medium (Photolithography/laser) | High (Steel compression mold) |
| Glove / Wet Usability | Excellent (Physical snap) | Excellent (Physical snap) | Moderate (Firmware tuned) | Good (Profile buttons) |
| Profile Thickness | 0.6mm – 1.2mm total stack | 0.8mm – 1.4mm total stack | 0.4mm – 0.8mm total stack | 3.0mm – 8.0mm assembly |
Regional Application Engineering
Mission-Critical Deployments Across Jacksonville’s Industrial Hubs
Serving Northeast Florida’s prominent commercial corridors: JAXPORT logistics, Cecil Airport aerospace facilities, urban medical hubs, and littoral marine operations.
JAXPORT Maritime & Intermodal Freight
Jacksonville is a vital deepwater port. Cranes, cold-storage monitors, and marine tug systems require IP67 polydome switches. Autotex PET and 3M VHB bonding resist salt-fog corrosion, diesel exhaust, and direct Atlantic sunlight.
Duval Medical & Clinical Diagnostics
Jacksonville’s world-renowned hospitals and life-science centers demand sterile human interfaces. Our polydome overlays incorporate antimicrobial finishes that resist harsh sterilizing agents, isopropyl alcohol, and sodium hypochlorite without legend wash-off.
Aerospace & Defense at Cecil Commerce Center
Ground support consoles and avionics test systems demand zero electromagnetic emission interference. Our silver circuit screening incorporates complete copper or carbon grounding grids for full EMI/ESD shielding exceeding 25kV static discharge protection.
Warehouse & Cold-Chain Automation
From automated palletizing plants along I-295 to chilled distribution facilities, our low-temperature polydome formulations maintain positive mechanical snap down to -20°C without plastic deformation or contact failure.
Enterprise Credentials
Why Tier-1 Engineers & Global OEM Procurement Choose ZIRA
Decades of continuous manufacturing, third-party facility audits, and uncompromising testing protocols translate into frictionless supply pipelines for Jacksonville buyers.
29+
Years Precision HMI Experience (Est. 1996)
5,000m²
State-of-the-Art Production Facility
100%
Open/Short Circuit Electrical Verification
1 pc
Rapid Prototype Sampling Available
Intertek Onsite Assessed Factory
Our complete production infrastructure, quality management documentation, and environmental management systems have undergone rigorous onsite verification by Intertek. Buyers can audit with total transparency.
Trusted by ABB & Emerson
Decades-long strategic component relationships with global electrical infrastructure and automation leaders confirm our ability to meet tight tolerances, UL94 V-0 flammability targets, and strict PPM thresholds.
Pre-Tooling DFM & Simulation
Our dedicated engineering department reviews CAD layer stack-ups, tail layout stress curves, trace resistance paths, and LED luminous balances before physical tooling begins, driving revision cycles to zero.
Turnkey In-House Fabrication
From precision silkscreen printing, automatic reel-to-reel drying, and cleanroom positioning punching to hydraulic embossing and terminal crimping, every process step is governed under one roof in Ningbo.
Premium Sourced Materials
We source authentic Autotype PET, Toray films, engineered Acheson silver conductive inks, and genuine 3M adhesives (467MP, 468MP, VHB) so your panels never bubble, delaminate, or oxidize under coastal humidity.
Complete International Logistics
Full support for DDP delivery straight to Jacksonville docks, Cecil Field, or industrial park addresses. We manage all export compliance, customs clearance, and trackable express air delivery for rapid prototyping.
First Coast Sourcing Intelligence
Emerging HMI Engineering Trends in the Jacksonville Metro Market
How Northeast Florida hardware developers and supply chain executives are navigating modern human-machine interface requirements.
Transition to Sealed Thin Interfaces
Jacksonville industrial teams are actively replacing bulky mechanical pushbuttons and rotary switches with continuous, sealed polydome membrane panels. This shift reduces enclosure cutouts, lowers tooling weight, and eliminates moisture ingress channels in humid sub-tropical climates.
LGF Backlighting in Marine & Field Consoles
Ambient glare along coastal waters and dim night ops at marine docks require balanced illumination. Light Guide Film (LGF) paired with edge-firing SMT LEDs allows Jacksonville designers to illuminate individual legends while keeping power draws under 15mA.
Supply Chain Resiliency & DDP Terms
Jacksonville electronics assemblers balance cost competitiveness with supply security. By utilizing direct factory production combined with delivered-duty-paid (DDP) freight logistics, procurement teams save 35–45% compared to local broker markups without customs friction.
Procurement Direct Answers
Frequently Asked Questions by Jacksonville Engineering & Sourcing Teams
Everything you need to know about lead times, environmental compliance, file formats, and freight logistics to Northeast Florida.
What is the typical prototype lead time and production turnaround for Jacksonville orders?
Laser-cut physical samples and DFM prototypes are typically fabricated within 7 to 10 working days from artwork freeze. Upon sign-off, volume batches of 500 to 10,000 units are manufactured within 15 to 20 working days. Shipments to Jacksonville are expedited via FedEx/DHL air express in 3 to 5 transit days directly to Duval County facilities.
How do polydome membrane switches withstand Jacksonville’s heat and humidity?
Northeast Florida's coastal humidity can cause silver trace migration in poorly manufactured switches. We combat this by specifying genuine heat-stabilized polyester substrates printed with protective carbon overcoats over all silver circuits, joined by genuine 3M 467/468MP closed-cell acrylic transfer tape. This prevents oxidation and condensation shorts under 95% RH conditions.
What file formats are required for our engineering team to receive a rapid DFM quote?
Our engineering R&D center works directly with vector CAD and graphic artwork packages. Ideal files include 2D drawings in DXF or DWG (indicating dimensions, tail location, dome centers, and cutouts) accompanied by graphic vectors in Adobe Illustrator (AI), PDF, or EPS. Please include circuit pin-out schedules and color callouts in Pantone Matching System (PMS) or RAL.
What connector configurations are standard for our interface PCBs?
We provide standard 2.54mm (0.100") pitch female housing connectors with gold or tin-plated pins (FCI, Nicomatic, or Berg style) suitable for mating with standard male PCB pin headers. For ultra-compact enclosures, we supply bare copper or silver flex tails prepared for 1.0mm or 0.5mm pitch ZIF (Zero Insertion Force) surface-mount connectors.
How does polydome tactile feel differ from metal dome switches in practical field use?
A polydome uses a precision-embossed polyester bubble, giving a slightly softer, muted tactile feel that produces virtually zero mechanical rattle under heavy machinery vibrations. Metal domes provide a crisper, more audible mechanical click. Polydomes are favored when cost-effective part counts and lower mechanical profile are paramount.
Can you produce combined hybrid units with silicone keypads over membrane circuits?
Yes. Many industrial customers in Jacksonville require the ergonomic deep-travel feel of molded silicone buttons combined with the sealed environmental protection of a flexible membrane circuit. We produce integrated silicone-over-polydome assemblies with laser-etched backlit legends and custom durometer elastomer keys.
Accelerate Your Jacksonville HMI Development Project
Send our senior engineering team your CAD layouts, overlay graphics, or switch specifications. We provide complimentary DFM reviews, layer stack-up guidance, and rapid quotation within 24 hours.
