Best Seller
Tactile Push Button PCB Membrane Switch
- FR-4 / CEM-1 PCB baseplate
- SMT LED integration capable
- Crisp metal tactile response
Low MOQ Prototyping
Engineering pilot runs starting from only 1 to 2 pieces to validate your mechanical and electrical design.
Tiered Volume Discounts
Scalable tiered B2B pricing from $0.50 to $3.00/pc based on material stack-up and annual scheduled volume.
100% Tested Reliability
Every switch lot undergoes rigorous continuity, insulation resistance, and actuation snap ratio inspection.
Rapid Worldwide Export
FOB, CIF, EXW, and DDP shipping to North America, Western Europe, and Asia with 24h engineering quotes.
Discounted B2B Showcase
Featured Promotional HMI Switches & Keypads
Manufactured strictly according to custom mechanical blueprints, pin-out diagrams, and harsh environmental parameters.
Tactile Dome
Tactile Metal Dome Membrane Keyboard Switch
- 1,000,000+ actuation cycles
- Precision graphic alignment
- Low electrical resistance
Rapid Pilot

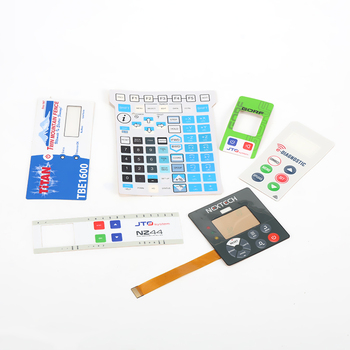

Membrane Switch Keypad with Flexible Tail
- Standard 2.54mm or 1.0mm tail
- Antimicrobial Autotex PET film
- Perimeter adhesive IP65 seal
Custom PCB

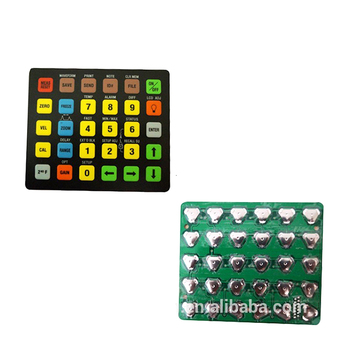

Industrial Push Button PCB Membrane Panel
- Multi-color screen printing
- Gold-plated contact pads
- Rigid backer structural stability
Heavy Duty

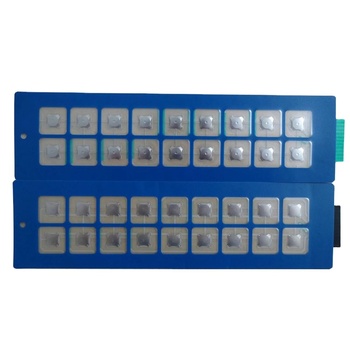

Tactile Metal Dome Membrane Switch Panel
- High snap ratio tactile feel
- Chemical & stain resistant overlay
- 3M 467MP / 468MP backing
Fast Prototype

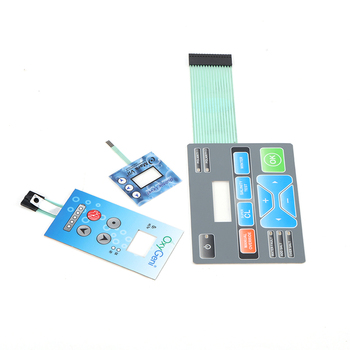

Rapid Prototype Membrane Switch Service
- CAD/Gerber file compatibility
- Complete electrical validation
- Low setup expenditure
Sample: 1 PC

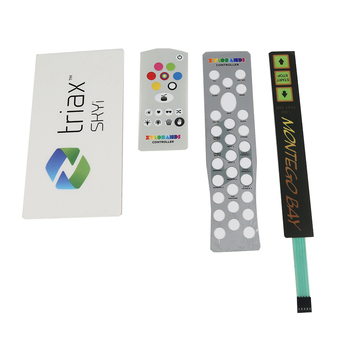

Digital & Screen Printed Graphic Overlays
- Photographic gradient fidelity
- Transparent LCD/LED windows
- Selective texturing available
FPC Circuit

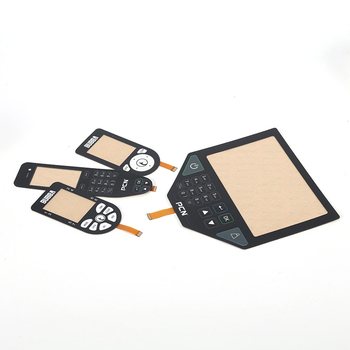

Tactile PET Foil & FPC Keypad Assembly
- Flexible copper polyimide circuit
- Zero silver migration risk
- High-vibration tolerance
Technical Tolerances & Production Benchmarks
| Loop Resistance | < 100 Ω (Customizable down to < 10 Ω with FPC/Copper) |
|---|---|
| Insulation Resistance | ≥ 100 MΩ @ 100V DC |
| Operating Voltage & Current | Max 35V DC, 100mA, 1W max contact rating |
| Contact Bounce | ≤ 5 ms (Tactile metal dome construction) |
| Actuation Force | 160g – 450g depending on dome diameter and snap preference |
| Operating Temperature | -20°C to +70°C (Extended industrial range: -40°C to +85°C) |
| Overlay Substrates | Autotex / Autostat PET, Lexan Polycarbonate (0.125mm - 0.25mm) |
| Mounting Adhesive | 3M 467MP, 3M 468MP, 3M 300LSE (for low surface energy plastics) |
Intertek Assessed Manufacturing Facility
Our 5,000 m² factory in Ningbo undergoes regular third-party audits by Intertek. Comprehensive quality checks cover incoming raw materials, screen emulsion thickness, temperature curing curves, and final electrical testing.
100% Continuity & Contact Testing
Every single membrane keypad is individually checked for open circuits, short circuits, trace resistance variations, and tactile dome placement using computerized automated test jigs prior to shipment.
Direct Factory Pricing from Ningbo
Deal directly with Zhejiang ZIRA Membrane Switch Co., Ltd. without trading intermediaries. We accommodate mixed-model container loads, scheduled release orders, and localized DDP customs clearance.
Direct Engineering Consultation
Request a Custom Prototype or Volume Price Proposal
Send your CAD files, schematic pin-out, or sample photos directly to our engineering department. We evaluate tactile feel, backlighting options, circuit impedance, and environmental sealing to provide a complete quotation within 24 hours.
