Engineered Membrane Keypads & Backlit Panels
Direct manufacturer supply for Portmore engineering firms, system integrators, and industrial OEM fabricators.
Multi Zone Backlight Design Independent Circuit Routing Uniform Illumination Custom Backlit Silicone Rubber Membrane Switch
Waterproof Industrial Membrane Panel with Shock Resistance Feature Membrane Switch
Hoee Factory Membrane Switch Keypad with Rubber Buttons 4*4/1*4/3*4/4*5 Layout MCU Expansion DIY Electronic Keyboard
Polyester Dome or Metal Dome Options Rated 1 Million Custom Membrane Switch Instrumentation Keypad

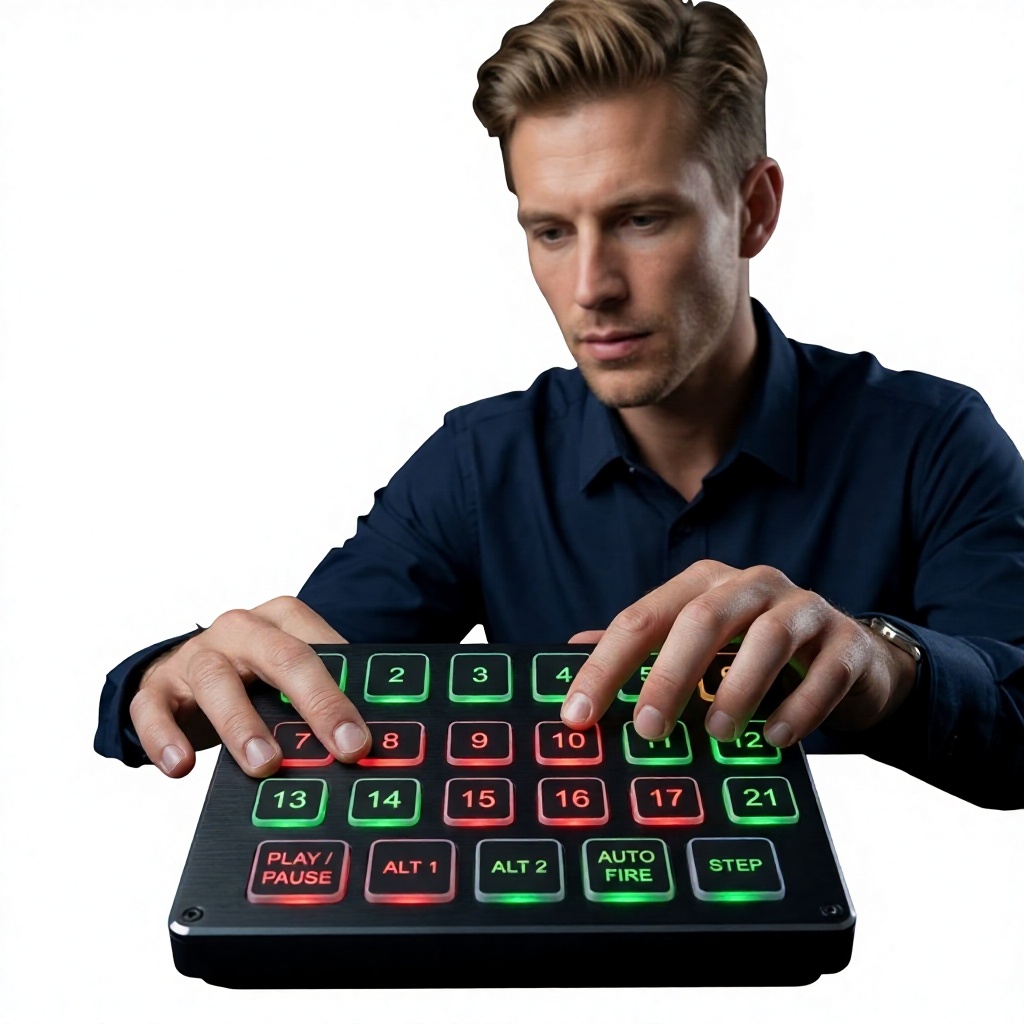

RoHS REACH Compliance Even Illumination Every Key Makes Night Operation Customized Backlit Membrane Keypad Switch
Custom PET Membrane Switch Keypad, ESD Shielding Layer Thin Film Push Button Membrane Switch for Electronic Equipment

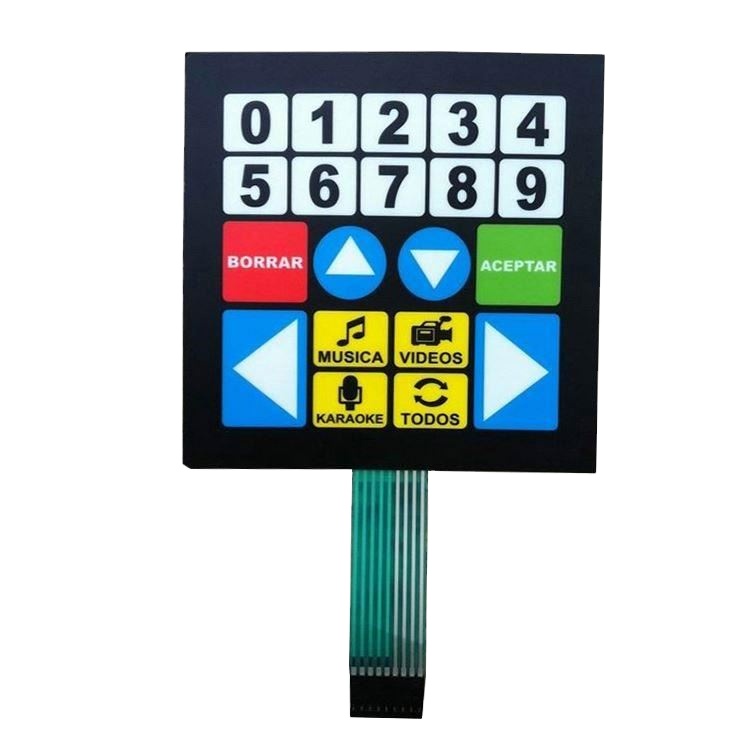

OEM ODM Custom Membrane Switch Keypad, PET PC Graphic Overlay Tactile Push Button Membrane Switch for Industrial Control Panel
OEM ODM Custom Membrane Switch Keypad Waterproof Metal Dome Tactile Switch with 3M Adhesive for Industrial Control Equipment
Engineering High-Efficiency Backlit Membrane Switches
In modern Human-Machine Interface (HMI) design, backlighting is no longer merely an aesthetic embellishment; it is a mission-critical functional requirement. In safety-critical industrial controls, low-light marine bridge panels, and round-the-clock logistics operations, backlighting ensures rapid key recognition, decreases human operational error, and provides unambiguous real-time system status.
Achieving uniform luminance across a sealed, low-profile membrane matrix requires precision photometrical modeling and micro-optical engineering. Zhejiang ZIRA Membrane Switch Co., Ltd. implements four distinct illumination architectures tailored to budget, operating envelope, and enclosure depth:
Light Guide Film (LGF)
Utilizes ultra-thin (0.125mm–0.25mm) micro-etched optical polycarbonate or PMMA film. Side-firing SMDs inject light into the film edges, where high-density micro-dots redirect light upward through key graphic legends. Eliminates hot spots while maintaining an ultra-thin stack-up.
Surface-Mount LED Array
Discrete chip LEDs (0603, 0805, or reverse-gull-wing packages) mounted directly onto a flexible printed circuit (FPC) or rigid FR4 substrate. Embossed dome pockets diffuse the illumination. Ideal for localized indicator status, multi-color tally feedback, and high ambient contrast.
Electroluminescent (EL)
Phosphor-doped dielectric layers energized by an alternating electric field (AC inverter). Delivers 100% perfectly flat, homogenous, non-glare surface luminescence. Highly compact, but requires AC excitation (80-110VAC, 400Hz) and is suited for moderate-life standby interfaces.
Optical Fiber Weave
Woven multi-strand plastic optical fibers layered above the tactile dome array. Light injected by high-flux remote LEDs passes down fiber strands and leaks at controlled micro-bends. Generates zero heat, produces zero EMI, and withstands hazardous explosive atmospheres.
Technical Specification Comparison of Illumination Technologies
Selecting the optimal backlighting method requires balancing photometric performance, mechanical envelope constraints, operating voltage, and lifecycle parameters:
| Illumination Technology | Typical Thickness Adder | Luminance (Cd/m²) | Power Consumption | Operating Lifespan | Thermal Emission | EMI / ESD Sensitivity |
|---|---|---|---|---|---|---|
| Micro-Dot Light Guide Film (LGF) | 0.15 mm – 0.30 mm | 30 – 120 | Low (20–40 mA per LED) | 50,000+ Hours | Negligible (Peripheral) | Immune (Solid-state routing) |
| Direct SMD Discrete LED | 0.80 mm – 1.60 mm | 100 – 400+ | Medium (15–30 mA/key) | 100,000 Hours | Low to Moderate | Requires ESD grounding plane |
| Electroluminescent (EL Lamps) | 0.10 mm – 0.20 mm | 15 – 65 | High (via AC Inverter) | 5,000 – 10,000 Hours | Zero (Cold light) | Generates minor high-frequency EMI |
| Woven Optical Fiber Mat | 0.30 mm – 0.50 mm | 25 – 90 | Low (Central LED feed) | 50,000+ Hours | Zero on active face | 100% EMI/RFI Immune (Intrinsic safety) |
Tropicalizing Membrane Switches for Portmore’s Maritime Climate
Portmore’s unique geographical position—situated along Kingston Harbour and the Caribbean Sea—subjects electronic equipment to severe environmental stressors that cause standard commercial keypads to fail prematurely.
Mitigating Coastal Airborne Salinity, UV Radiation, and Thermal Cycling
Unlike indoor commercial electronics, industrial control panels and human-machine interfaces deployed in Portmore, St. Catherine, face high atmospheric salinity (sodium chloride aerosol), continuous ambient humidity averaging between 75% and 92%, and intense tropical ultraviolet radiation (solar UV index consistently exceeding 11). Standard silver conductive ink traces without specialized barriers are susceptible to electrochemical silver migration, trace corrosion, and dielectric breakdown when exposed to humid saline air.
Salt Fog & Corrosion Defense
To resist ASTM B117 salt spray exposure, ZIRA applies an over-printed carbon conductor bridging layer over silver conductive tracks. This hermetically seals silver conductors, eliminating the electrochemical potential difference that drives galvanic corrosion and silver tree dendrite growth.
Autotex XE UV Barrier Substrate
For outdoor machinery across Portmore's light industrial parks, we utilize Autotype MacDermid Autotex XE outdoor-formulated biaxially-oriented polyester (PET). Autotex XE integrates specialized UV absorbers that prevent embrittlement, yellowing, and micro-cracking across 10+ years of Caribbean sun exposure.
IP67 Hermetic Ingress Sealing
Using 3M 300LSE low surface energy acrylic transfer films combined with perimeter hydrophobic silicone gasket channels, our assemblies achieve true IP67 / NEMA 4X ingress protection. Internal vents incorporate expanded PTFE membranes to equalize barometric pressure without letting humid air penetrate.
Furthermore, internal metal dome switches are plated with 0.1µm hard gold over nickel rather than raw stainless steel. This prevents contact interface oxidation caused by micro-condensation cycles common during Portmore's transition from scorching daytime temperatures to humid sea-breeze nights.
Where ZIRA Backlit Switches Operate Across Greater Portmore & Kingston
Precision-tailored human-machine interfaces powering critical commercial, industrial, and maritime installations.
Maritime Logistics & Port Terminals
Supporting containerized shipping, feeder freight, and port logistics operating adjacent to Kingston Wharves and the Portmore causeway. Our backlit membrane keypads are integrated into ship-to-shore crane cab consoles, straddle carrier control interfaces, and outdoor reefer container temperature telemetry consoles that demand 24/7 visibility and marine-grade salt-mist resilience.
Solar Inverters & Microgrid Storage
With Jamaica’s national drive toward renewable energy integration, solar PV farms and commercial battery energy storage systems (BESS) across St. Catherine require rugged outdoor parameter configuration panels. ZIRA’s high-contrast backlit keypads allow maintenance engineers to configure inverters in direct Caribbean sunlight or pitch-dark emergency outages.
Commercial Security & Access Control
Used widely across Portmore's commercial business hubs, municipal annexes, and gated residential enclaves. High-tactile metal dome silicone-membrane hybrid keypads provide illuminated PIN-pad entry and intercom functionality, featuring scratch-resistant surface textures and anti-vandal back-support plates.
Food, Beverage & Agro-Processing
Portmore and the Kingston industrial belt house food and beverage packaging, bottling facilities, and cold-storage distribution. Our membrane panels feature non-porous antimicrobial polyester faceplates that withstand harsh caustic washdowns (chlorine sanitizers, IPA wipe-downs, and degreasers) without ink degradation or seal delamination.
Water Treatment & Desalination Control
Municipal water treatment facilities and reverse-osmosis desalination units require chemically inert operator interfaces. ZIRA switches engineered with closed-cell gasket perimeters prevent chemical chlorine gas, ozone, and water vapor ingress, maintaining continuous electrical isolation resistance >100MΩ at 100V DC.
Retail POS, Banking & Ticketing Kiosks
High-traffic commuter ticketing consoles at bus transport centres and self-service transactional kiosks utilize our tactile embossed keypads. Backlit icons provide clear guidance under varied lighting conditions, while 1,000,000-cycle tested domes ensure long service intervals without maintenance calls.
Emerging Technology Trends in the Portmore Industrial Corridor
How automation upgrades, IoT integration, and environmental compliance are shaping procurement priorities.
1. Transition Toward Hybrid Silicone-Rubber & Membrane Enclosures
Engineers throughout Jamaica are moving away from traditional rigid push-buttons toward integrated hybrid silicone-rubber membrane assemblies. By compression-molding an elastomer keymat over a sealed membrane switch circuit, devices gain 1.5mm–2.5mm of mechanical travel with a soft tactile feel, combined with complete IP67 seal protection. Backlighting is achieved through laser-etched silicone legends that channel light from embedded LEDs, providing high durability against abrasive Caribbean dust.
2. Rapid Growth in Micro-Controller Unit (MCU) Expansion Keypads
With educational, municipal, and private tech incubators expanding near Portmore, demand for standardized MCU-compatible keypad interfaces (such as our 4x4 and 4x5 matrix switch arrays with standard 2.54mm pitch connectors) has grown significantly. System builders use these flexible panels for quick integration into Arduino, Raspberry Pi, ESP32, and industrial PLC control blocks for custom telemetry and access automation.
3. Stringent Mandates for RoHS and Zero-Hazard Inks
In line with international maritime standards and Caribbean environmental safety protocols, municipal purchasers in Portmore require strict chemical compliance. All adhesives, conductive silver emulsions, graphic screen inks, and spacer films supplied by ZIRA comply with EU RoHS 2011/65/EU and REACH (EC 1907/2006) regulations, eliminating hazardous lead, cadmium, and hexavalent chromium from the production cycle.
Why International Procurement Teams Partner with ZIRA
Three decades of precision manufacturing, certified engineering processes, and global supply chain reliability.
Full In-House Manufacturing
Founded in 1996 in Ningbo, Zhejiang. Our 3,000–5,000m² facility integrates automated precision screen printing, laser die-cutting, embossing, SMT LED placement, and cleanroom lamination under one roof for complete quality control.
Engineering DFM Support
Our dedicated R&D engineering department conducts Design-for-Manufacturability (DFM) audits on every customer drawing. We optimize trace clearance, dome actuation force, tail pitch, and layer stack-up before hard tooling begins.
100% Electrical Inspection
Every switch batch is tested for circuit loop resistance (<100Ω), contact bounce (<5ms), insulation resistance (>100MΩ at 100V DC), dome actuation tactile feel, and chromaticity coordinates via computerized testing stations.
Direct Global Logistics
Over 50% of annual output exported globally. We manage full export documentation, air-express shipping (DHL, FedEx, UPS) directly to Portmore/Kingston within 4-7 business days, or consolidated ocean freight under standard Incoterms (FOB, CIF, DDP).
Frequently Asked Questions by Portmore & Jamaican Buyers
Detailed engineering, customs, shipping, and quality assurance answers for Caribbean buyers.
What shipping methods and delivery timelines apply for delivery to Portmore?
For rapid prototyping and urgent production batches, we ship air express via DHL, FedEx, or UPS directly to your facility in Portmore or Norman Manley International Airport (KIN) in Kingston within 4 to 7 business days. For high-volume production orders, ocean container shipping from Ningbo Port to Kingston Container Terminal takes approximately 28 to 35 days. We provide complete commercial invoices, packing lists, and Certificates of Origin for customs clearance.
How do your switches prevent delamination in Portmore's high humidity?
Tropical humidity causes standard pressure-sensitive adhesives to soften and delaminate. We exclusively specify genuine 3M 467MP, 468MP, or 3M 300LSE solvent-free acrylic adhesive transfer systems. These adhesives polymerize with surface energy over time, providing continuous shear strength from -40°C up to +150°C and total resistance to relative humidity exceeding 95% without edge bubbling.
What is the Minimum Order Quantity (MOQ) for custom fabricated panels?
To support engineering R&D and pilot programs, our prototype MOQ begins at just 1 to 5 pieces. For commercial volume production, orders typically start at 100 pieces. Standard matrix keypads or graphic overlays can be batched efficiently to minimize unit tooling overhead for Caribbean businesses.
What engineering files do you need to provide a formal quotation?
To generate an engineering review and DFM feedback within 24 hours, please supply: 1) Vector graphic artwork (Adobe Illustrator .AI, CorelDraw, or high-res vector .PDF); 2) Mechanical dimensions and cutouts (AutoCAD .DWG or .DXF); 3) Schematic pin-out logic or tail matrix pin assignments; and 4) Specified operating parameters (backlighting colors, tactile feedback requirement, and ingress protection level).
Can the backlighting colors be calibrated to match our corporate branding?
Yes. Our optical team matches translucent and dead-front graphic areas to specified Pantone Matching System (PMS) or RAL standards. For LED backlighting, we supply warm white (2700K-3200K), pure white (6000K-6500K), amber, green, red, bi-color, and full RGB programmable configurations with micro-diffusers to guarantee uniform, non-glare chromaticity.
What payment structures and international Incoterms are accepted?
We accept Telegraphic Transfer (T/T), Letter of Credit (L/C at sight), and Western Union in major currencies including USD and EUR. Standard terms include EXW, FOB Ningbo/Shanghai, CIF Kingston, CIP, and Delivered Duty Paid (DDP) by special arrangement with local freight brokers.
Upgrade Your Control Panels with Precision-Built Backlit Switches
Connect with ZIRA’s engineering team for complete Design-for-Manufacturability audits, fast sample turnarounds, and direct factory pricing for your Portmore installations.
