LGF / EL Tech
Custom LED EL Backlit Membrane Switch Keypad OEM ODM, PC Graphic Overlay
Uniform LGF
FPC Circuit
RoHS Certified
Engineering Catalog
High-Reliability Human-Machine Interface Assemblies
Engineered for mission-critical medical diagnostics, industrial automation, defense avionics, and smart consumer devices. Backed by 100% electrical continuity testing and verified material safety standards.
IP67 Waterproof
OEM ODM Custom Membrane Switch Keypad Waterproof Metal Dome Tactile Switch
3M 300LSE Adhesive
Snap Ratio >50%
NEMA 4X
Tactile Metal Dome

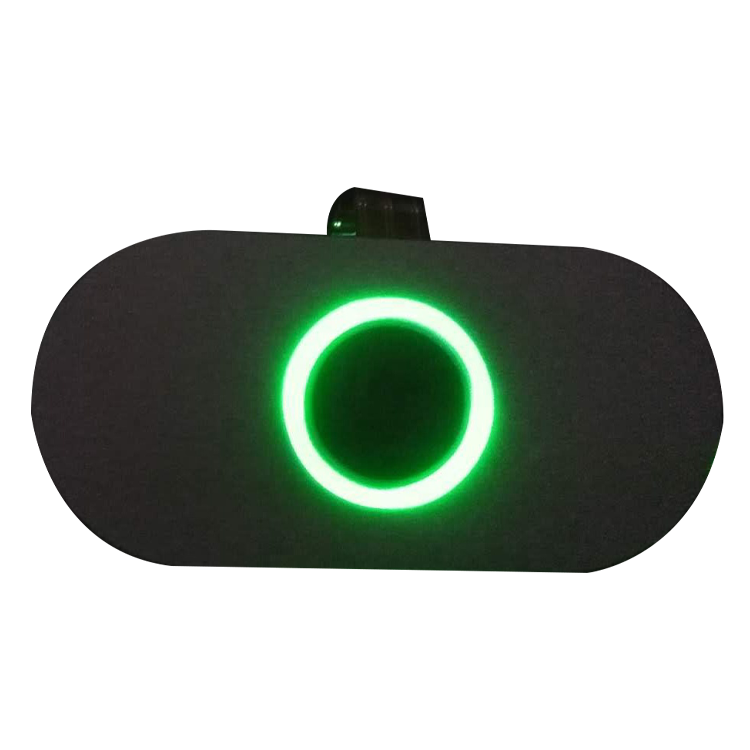

Custom LED Backlit Membrane Switch Keypad Push Button for Industrial Control
Surface SMT LEDs
1,000,000 Cycles
Autotex PET
Capacitive ITO
Waterproof Capacitive Touch Membrane Switch with Customizable Texture
Zero Actuation Force
Hermetic Seal
Anti-Microbial
Flexible Keymat
China Manufacturer Custom Membrane Push Button Switch Flexible OEM ODM
Silver Printed Track
Rapid Sample
Custom Pitch
Thin Film LGF
Custom Thin Film Illuminated Panel LGF / LED Backlight Membrane Switch
Ultra-Slim 0.8mm
Low Power Draw
Laser Micro-Dots
Heavy Industrial

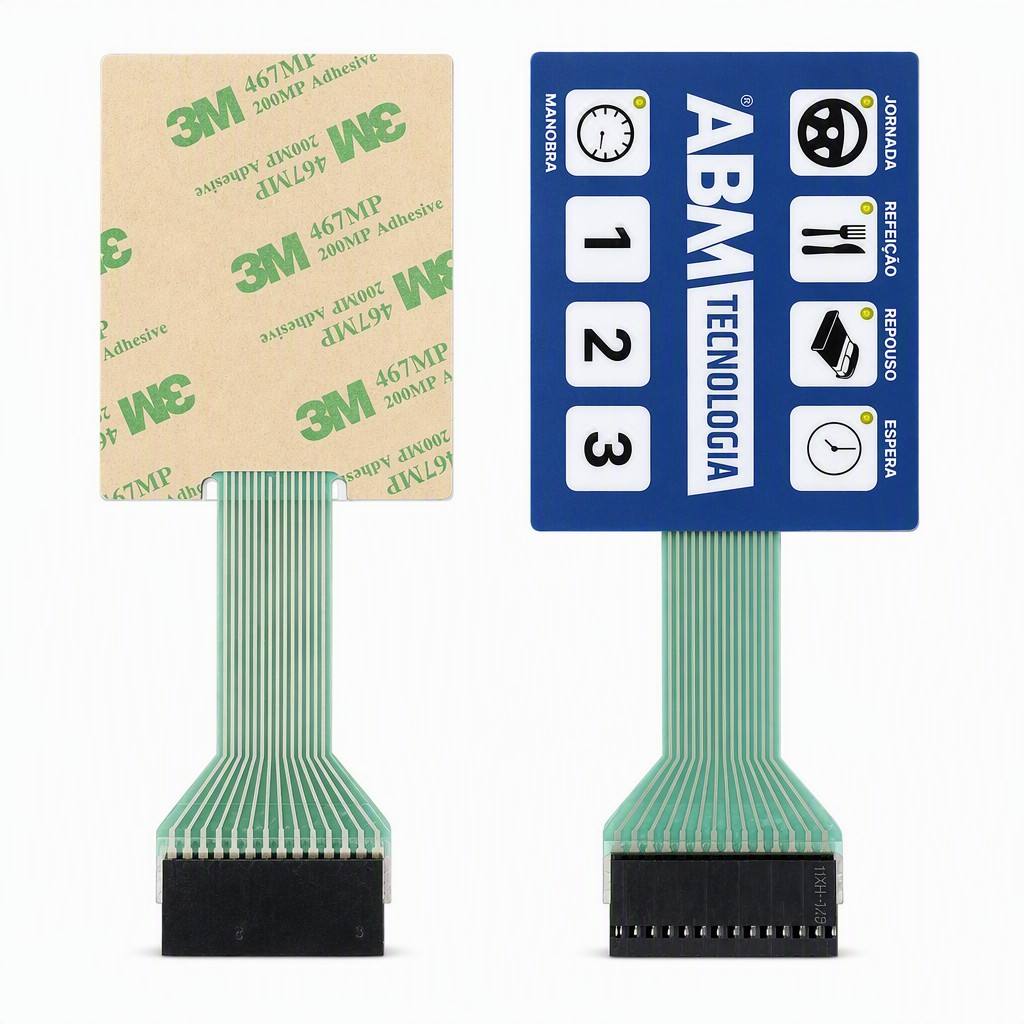

Custom Membrane Switch Industrial Control Panel Keypad Tactile Metal Dome
5 Million Cycles
UL94V-0 Rated
Chemical Resistant
High Performance
High-Performance OEM Membrane Key Switch with Integrated LED Backlight
Rigid FR-4 Backer
ESD Shielding
Broad Temp Range
29+
Years Engineering (Est. 1996)
5,000m²
Modern Cleanroom Facility
100%
Electrical & Continuity Tested
50M
Annual Export Capacity (USD)
Industry Whitepaper Analysis
Engineering Elastomer Keypads & Hybrid Interfaces
In high-reliability Human-Machine Interface (HMI) design, silicone elastomer keypads and graphic overlays bridge tactile ergonomics with critical hermetic isolation. Understanding structural trade-offs prevents field failure in challenging deployments.
| Evaluation Parameter | Compression Molded Silicone Elastomer | PET/PC Tactile Membrane Switch | Hybrid Silicone-Over-Membrane / PCB |
|---|---|---|---|
| Tactile Feedback & Travel | Long travel (1.0 mm to 2.5 mm); smooth elastomeric buckling web feeling | Crisp click; stainless steel domes (0.2 mm to 0.5 mm travel) | Combines cushioned silicone 3D key tops with distinct metal dome snap |
| Ingress Protection (IP Rating) | IP65–IP68 with integrated compression perimeter bead | IP67 perimeter adhesive gasket isolation | IP68 Hermetic absolute wash-down & sterilization proof |
| Actuation Life Expectancy | 5,000,000+ mechanical actuations | 1,000,000 to 3,000,000 cycles (dome alloy dependent) | 5,000,000+ cycles with stable contact resistance |
| Contact Substrate Technology | Conductive carbon pills (<100Ω) or gold-plated pills (<1Ω) | Screen-printed conductive silver ink with carbon dielectric overprint | Direct gold-plated copper contacts on rigid FR-4 or flexible polyimide |
| Surface Finishing Options | PU spray, UV-cured matte coating, laser etching, plastic keycaps | Fine/velvet textured Autotex PET, anti-glare, chemical-resistant PC | Abrasion-resistant epoxy key tops or double-shot dual durometer silicone |
| Primary Application Niches | Handheld remotes, heavy outdoor equipment, medical respirators | Laboratory instruments, diagnostic panels, HVAC control systems | Military avionics, ruggedized telemetry, marine navigational consoles |
Elastic Web Mechanics & Snap Ratio
The tactile feedback of an elastomer keypad depends on its silicone web geometry. Controlling wall angle (between 40° and 60°), web thickness (0.35 mm to 0.65 mm), and material durometer (40 to 70 Shore A) lets our tooling engineers calibrate actuation force between 100g and 500g while maintaining a snap ratio between 40% and 60% for positive key engagement.
Conductive Pillar Science
To ensure long-term electrical contact against FR-4 PCB copper traces or flexible PET conductor loops, we vulcanize conductive carbon pills directly into the silicone base during compression molding. For ultra-low contact resistance applications under 1.0 Ohm, we offer vapor-deposited gold pills or co-molded nickel-alloy contact matrices.
Environmental Sealing & Chemical Shielding
Medical disinfectants, automotive oils, and industrial cleansers break down standard plastics. We formulate high-grade LSR (Liquid Silicone Rubber) with fluorosilicone additives to resist harsh hydrocarbons. We also integrate continuous compression lip gaskets to meet stringent IP67 and IP68 ratings for wash-down operating environments.
Strategic Sourcing Insights
Future Procurement Trends in Elastomer & Membrane HMI
Global original equipment manufacturers are shifting from simple off-the-shelf pushbuttons toward intelligent, hermetically sealed, integrated interface subassemblies.
1. Supply Chain Consolidation & Turnkey Assemblies
Purchasing departments are replacing multi-tier supplier networks with single-source custom suppliers. Rather than ordering silicone mats from one vendor, PCBs from another, and graphic bezels from a third, Tier-1 procurement teams now specify complete plug-and-play assemblies. Our engineering team combines SMD LEDs, micro-controllers, display bezels, metal backplates, and tested cable harnesses directly into ready-to-mount modules.
2. Light Guide Film (LGF) & Laser Etching
Bulky, power-hungry incandescent and discrete LED bulbs have given way to ultra-thin Light Guide Film (LGF) designs. Using laser-etched micro-prisms across 0.125 mm to 0.25 mm polycarbonate films, side-firing SMD diodes channel illumination evenly beneath keys without hot spots. Combined with translucent silicone and laser-etched black coatings, this enables crisp backlighting in cockpit controls, automotive dashes, and night-vision military devices.
3. Antimicrobial Coatings & Harsh Medical Disinfection
Post-pandemic healthcare standards require continuous sterilization of hospital monitors and diagnostic consoles with aggressive chemicals like bleach, isopropyl alcohol, and quaternary ammonium. Modern manufacturing incorporates silver-ion biocidal agents directly into the graphic overlay substrate, while medical-grade platinum-cured silicone resists degradation over thousands of high-temperature autoclave cycles.
Enterprise Credentials
Why Global Industrial Leaders Audit & Trust ZIRA
Intertek Onsite Audited
Our manufacturing plant, quality management workflow, and environmental standards are independently inspected and verified onsite by Intertek, with reports accessible to purchasing partners worldwide.
ABB & Emerson Vendor
We maintain long-term component supply agreements with global automation pioneers, meeting rigorous tolerances, low PPM requirements, and documented lot traceability.
Full In-House Tooling
From precision CNC steel mold fabrication and silicone compression presses to Class 10,000 screen printing and laser profile cutting, the complete lifecycle stays under our roof in Ningbo.
Flexible MOQ & Fast Prototypes
We offer engineering samples from 1 piece for proof-of-concept testing, transitioning seamlessly into high-volume manufacturing with standard production runs starting at 100 units.
Quality Assurance Protocol
Precision Manufacturing & Testing Methodology
Zero-defect production requires clear stage-gate inspections from raw material receipt through to final automated electrical continuity testing.
01
Material QC
Spectroscopic, thickness, and surface tension verification of incoming PET, adhesives, and raw silicone elastomers.
02
Cleanroom Printing
Multi-pass high-precision screen printing of conductive silver circuits, graphic overlays, and dielectric insulation masks.
03
Key Embossing
Precision thermal and hydro-forming of tactile key perimeters, pillow rims, and custom dome actuation pockets.
04
Layer Lamination
Bubble-free optical registration and adhesive bonding with 3M performance acrylic adhesives under static control.
05
100% Inspection
Automated electrical continuity checking, insulation resistance auditing, contact loop testing, and visual verification.
Direct Answers for Engineers & Buyers
Frequently Asked Questions on Sourcing from China
Key information on tooling costs, lead times, export terms, and technical specifications to guide your evaluation process.
?
What technical files are required to begin tooling and quotation?
To provide an accurate DFM (Design for Manufacturability) analysis, we ask for 2D engineering drawings with dimensional tolerances (AutoCAD DWG, DXF, or PDF), 3D CAD files for molded silicone keycaps (STEP, IGES), circuit schematic pin-outs, Pantone or RAL color codes, and any operating environment requirements (operating temperature, UV exposure, chemical contact).
?
What is your standard production lead time and prototyping cycle?
Prototype samples for membrane switches typically deliver in 7 to 10 working days. For custom compression-molded silicone rubber keypads, mold fabrication and pilot samples take 14 to 18 working days. High-volume repeat production runs generally ship within 2 to 3 weeks, with urgent expedited runs available on request.
?
How do you verify waterproof sealing for IP67 or IP68 ratings?
We use continuous perimeter closed-loop adhesive gaskets (such as 3M 200MP or 300LSE series) and internal venting channels routed through the connector tail rather than the key matrix. For silicone keypads, we mold integrated wrap-around sealing ribs that compress directly against the host enclosure, tested via positive-pressure air leak decay and immersion tanks.
?
What are the differences between conductive carbon pills and metal domes?
Conductive carbon pills provide a soft, smooth, silent tactile feel with actuation travel between 1.0 mm and 2.0 mm, commonly used on consumer remotes and medical instruments. Stainless steel metal domes provide a sharp tactile click with shorter travel (0.3 mm to 0.6 mm) and distinct mechanical feedback, ideal for noisy industrial equipment where operators wear gloves.
?
What testing procedures apply to finished switch subassemblies?
Every production batch undergoes 100% automated electrical testing for contact resistance, short circuits, open loops, and insulation breakdown at 250V DC. In our testing lab, we run lifecycle wear tests (RCA abrasion), key actuation endurance tests up to 5,000,000 actuations, and thermal-humidity environmental cycling (-40°C to +85°C).
?
Which international shipping terms and payment currencies do you support?
We export globally under FOB Ningbo/Shanghai, CIF, EXW, CIP, and door-to-door DDP arrangements via DHL, FedEx, air freight, or ocean container. We accept T/T, L/C at sight, and wire transfers in USD, EUR, GBP, HKD, and CNY, with dedicated account managers assigned to overseas OEM contracts.
Accelerate Your Custom Interface Development
Collaborate with our Ningbo engineering team for complimentary DFM analysis, material stack-up recommendations, and 24-hour rapid quotation. Over 29 years of precision manufacturing ready to support your production timeline.
